/Users/richardeakin/projects/libsms/trunk/src/soundIO.c File Reference

soundfile input and output. More...

#include "sms.h"

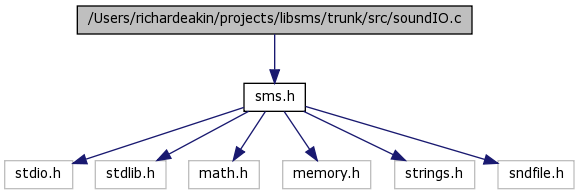

Include dependency graph for soundIO.c:

Defines
#define	MAX_SAMPLES 10000
Functions
int	sms_openSF (char pChInputSoundFile, SMS_SndHeader pSoundHeader)
	open a sound file and check its header
void	sms_closeSF ()
	close a sound file that was open for reading
int	sms_getSound (SMS_SndHeader pSoundHeader, long sizeSound, sfloat pSound, long offset)
	get a chunk of sound from input file
int	sms_createSF (char *pChOutputSoundFile, int iSamplingRate, int iType)
	function to create an output sound file
void	sms_writeSound (sfloat *pFBuffer, int sizeBuffer)
	write to the sound file data
void	sms_writeSF ()
	function to write the output sound file to disk
int	sms_createResSF (int iSamplingRate)
	function to create the residual sound file
int	sms_writeResSound (sfloat *pBuffer, int sizeBuffer)
	function to write to the residual sound file
void	sms_writeResSF ()
	write the residual sound file to disk
void	sms_fillSoundBuffer (int sizeWaveform, sfloat pWaveform, SMS_AnalParams pAnalParams)
	fill the sound buffer
Variables
SNDFILE *	pSNDStream
SNDFILE *	pOutputSNDStream
SNDFILE *	pResidualSNDStream
SF_INFO	sfSoundHeader
SF_INFO	sfResidualHeader
SF_INFO	sfOutputSoundHeader
const char *	pChResidualFile = "residual.aiff"

Detailed Description

soundfile input and output.

Define Documentation

#define MAX_SAMPLES 10000

Referenced by sms_getSound().

Function Documentation

void sms_closeSF ( )

close a sound file that was open for reading

References pSNDStream.

int sms_createResSF ( int iSamplingRate )

function to create the residual sound file

Parameters:

iSamplingRate

samplerate of sound file

Returns:: error code

See also:: SMS_SNDERR in SMS_ERRORS

References pChResidualFile, pResidualSNDStream, sfResidualHeader, and sms_error().

Here is the call graph for this function:

int sms_createSF	(	char *	pChOutputSoundFile,
		int	iSamplingRate,
		int	iType
	)

function to create an output sound file

Parameters:

	pChOutputSoundFile	name of output file
	iSamplingRate	sampling rate of synthesis
	iType	output file format (0 is wav, 1 is aiff, or other is libsndfile specific)

Returns:: 0 on success, -1 on failure

References pOutputSNDStream, sfOutputSoundHeader, and sms_error().

Here is the call graph for this function:

void sms_fillSoundBuffer	(	int	sizeWaveform,
		sfloat *	pWaveform,
		SMS_AnalParams *	pAnalParams
	)

fill the sound buffer

Parameters:

	sizeWaveform	size of input data
	pWaveform	input data
	pAnalParams	pointer to structure of analysis parameters

References SMS_AnalParams::iAnalysisDirection, SMS_SndBuffer::iFirstGood, SMS_SndBuffer::iMarker, MAX, SMS_SndBuffer::pFBuffer, sfloat, SMS_SndBuffer::sizeBuffer, SMS_DIR_REV, sms_preEmphasis(), and SMS_AnalParams::soundBuffer.

Referenced by sms_analyze().

Here is the call graph for this function:

int sms_getSound	(	SMS_SndHeader *	pSoundHeader,
		long	sizeSound,
		sfloat *	pSound,
		long	offset
	)

get a chunk of sound from input file

This function will copy to samples from the channel specified by SMS_SndHeader->iReadChannel to an array, which is by default the first channel.

Parameters:

	pSoundHeader	sound header information to hold extracted information
	sizeSound	number of samples read
	pSound	buffer for samples read
	offset	which sound frame to start reading from

Returns:: 0 on success, -1 on failure

References SMS_SndHeader::channelCount, SMS_SndHeader::iReadChannel, MAX_SAMPLES, pSNDStream, sfloat, sms_error(), and SMS_MALLOC.

Here is the call graph for this function:

int sms_openSF	(	char *	pChInputSoundFile,
		SMS_SndHeader *	pSoundHeader
	)

open a sound file and check its header

Defualt channel to read is 1. If the user wishes to read from a different channel when calling sms_getSound, they need to set SMS_SndHeader->iReadChannel to the desired channel number.

Parameters:
