/Users/richardeakin/projects/libsms/trunk/src/peakContinuation.c File Reference

peak continuation algorithm and functions More...

#include "sms.h"

Include dependency graph for peakContinuation.c:

Defines
#define	GUIDE_BEG   -2
#define	GUIDE_DEAD   -1
#define	GUIDE_ACTIVE   0
#define	MAX_CONT_CANDIDATES   5
Functions
static int	GetNextClosestPeak (sfloat fGuideFreq, sfloat *pFFreqDistance, SMS_Peak *pSpectralPeaks, SMS_AnalParams *pAnalParams, sfloat fFreqDev)
	function to get the next closest peak from a guide
static int	ChooseBestCand (SMS_ContCandidate *pCandidate, int nCandidates, sfloat fFreqDev)
	choose the best candidate out of all
static int	CheckForConflict (int iBestPeak, SMS_Guide *pGuides, int nGuides)
	check for one guide that has choosen iBestPeak
static int	BestGuide (int iConflictingGuide, int iGuide, SMS_Guide *pGuides, SMS_Peak *pSpectralPeaks)
	chose the best of the two guides for the conflicting peak
static int	GetBestPeak (SMS_Guide *pGuides, int iGuide, SMS_Peak *pSpectralPeaks, SMS_AnalParams *pAnalParams, sfloat fFreqDev)
	function to find the best continuation peak for a given guide
static int	GetNextMax (SMS_Peak *pSpectralPeaks, sfloat *pFCurrentMax)
	function to get the next maximum (magnitude) peak
static int	GetStartingPeak (int iGuide, SMS_Guide *pGuides, int nGuides, SMS_Peak *pSpectralPeaks, sfloat *pFCurrentMax)
	function to get a good starting peak for a track
int	sms_peakContinuation (int iFrame, SMS_AnalParams *pAnalParams)
	function to advance the guides through the next frame

---

Detailed Description

peak continuation algorithm and functions

---

Define Documentation

#define GUIDE_ACTIVE   0

Referenced by sms_peakContinuation().

#define GUIDE_BEG   -2

diferent status of guide

Referenced by GetStartingPeak().

#define GUIDE_DEAD   -1

Referenced by sms_peakContinuation().

#define MAX_CONT_CANDIDATES   5

maximum number of peak continuation candidates

Referenced by GetBestPeak().

---

Function Documentation

static int BestGuide	(	int	iConflictingGuide,
		int	iGuide,
		SMS_Guide *	pGuides,
		SMS_Peak *	pSpectralPeaks
	)			[static]

chose the best of the two guides for the conflicting peak

Parameters:

	iConflictingGuide	conflicting guide number
	iGuide	guide number
	pGuides	array of guides
	pSpectralPeaks	array of peaks

Returns:

number of guide

References SMS_Guide::iPeakChosen, and sfloat.

Referenced by GetBestPeak().

static int CheckForConflict	(	int	iBestPeak,
		SMS_Guide *	pGuides,
		int	nGuides
	)			[static]

check for one guide that has choosen iBestPeak

Parameters:

	iBestPeak	choosen peak for a guide
	pGuides	array of guides
	nGuides	total number of guides

Returns:

number of guide that chose the peak, or -1 if none

Referenced by GetBestPeak(), and GetStartingPeak().

static int ChooseBestCand	(	SMS_ContCandidate *	pCandidate,
		int	nCandidates,
		sfloat	fFreqDev
	)			[static]

choose the best candidate out of all

Parameters:

	pCandidate	pointer to all the continuation candidates
	nCandidates	number of candidates
	fFreqDev	maximum frequency deviation allowed

Returns:

the peak number of the best candidate

References SMS_ContCandidate::fFreqDev, SMS_ContCandidate::fMagDev, and sfloat.

Referenced by GetBestPeak().

static int GetBestPeak	(	SMS_Guide *	pGuides,
		int	iGuide,
		SMS_Peak *	pSpectralPeaks,
		SMS_AnalParams *	pAnalParams,
		sfloat	fFreqDev
	)			[static]

function to find the best continuation peak for a given guide

Parameters:

	pGuides	guide attributes
	iGuide	number of guide
	pSpectralPeaks	peak values at the current frame
	pAnalParams	analysis parameters
	fFreqDev	frequency deviation allowed

Returns:

the peak number

References BestGuide(), CheckForConflict(), ChooseBestCand(), SMS_Guide::fFreq, SMS_ContCandidate::fFreqDev, SMS_AnalParams::fFreqDeviation, SMS_Guide::fMag, SMS_ContCandidate::fMagDev, GetNextClosestPeak(), SMS_AnalParams::iDebugMode, SMS_ContCandidate::iPeak, SMS_Guide::iPeakChosen, MAX_CONT_CANDIDATES, SMS_AnalParams::nGuides, sfloat, SMS_DBG_ALL, and SMS_DBG_PEAK_CONT.

Referenced by sms_peakContinuation().

Here is the call graph for this function:

static int GetNextClosestPeak	(	sfloat	fGuideFreq,
		sfloat *	pFFreqDistance,
		SMS_Peak *	pSpectralPeaks,
		SMS_AnalParams *	pAnalParams,
		sfloat	fFreqDev
	)			[static]

function to get the next closest peak from a guide

Parameters:

	fGuideFreq	guide's frequency
	pFFreqDistance	distance of last best peak from guide
	pSpectralPeaks	array of peaks
	pAnalParams	analysis parameters
	fFreqDev	maximum deviation from guide

Returns:

peak number or -1 if nothing is good

References SMS_Peak::fFreq, sfloat, and SMS_MAX_NPEAKS.

Referenced by GetBestPeak().

static int GetNextMax	(	SMS_Peak *	pSpectralPeaks,
		sfloat *	pFCurrentMax
	)			[static]

function to get the next maximum (magnitude) peak

Parameters:

	pSpectralPeaks	array of peaks
	pFCurrentMax	last peak maximum

Returns:

the number of the maximum peak

References SMS_Peak::fMag, sfloat, and SMS_MAX_NPEAKS.

Referenced by GetStartingPeak().

static int GetStartingPeak	(	int	iGuide,
		SMS_Guide *	pGuides,
		int	nGuides,
		SMS_Peak *	pSpectralPeaks,
		sfloat *	pFCurrentMax
	)			[static]

function to get a good starting peak for a track

Parameters:

	iGuide	current guide
	pGuides	array of guides
	nGuides	total number of guides
	pSpectralPeaks	array of peaks
	pFCurrentMax	current peak maximum

Returns:

Todo:

should this return something?

References CheckForConflict(), SMS_Peak::fFreq, SMS_Guide::fFreq, GetNextMax(), GUIDE_BEG, SMS_Guide::iPeakChosen, and SMS_Guide::iStatus.

Referenced by sms_peakContinuation().

Here is the call graph for this function:

int sms_peakContinuation	(	int	iFrame,
		SMS_AnalParams *	pAnalParams
	)

function to advance the guides through the next frame

the output is the frequency, magnitude, and phase tracks

Parameters:

	iFrame	current frame number
	pAnalParams	analysis parameters

Returns:

error code

See also:

SMS_ERRORS

References SMS_AnalFrame::deterministic, SMS_AnalParams::fDefaultFundamental, SMS_Peak::fFreq, SMS_Guide::fFreq, SMS_AnalParams::fFreqDeviation, SMS_AnalFrame::fFundamental, SMS_AnalParams::fFundContToGuide, SMS_AnalParams::fHighestFreq, SMS_Peak::fMag, SMS_Guide::fMag, SMS_AnalParams::fPeakContToGuide, SMS_Peak::fPhase, GetBestPeak(), GetStartingPeak(), GUIDE_ACTIVE, GUIDE_DEAD, SMS_AnalParams::iDebugMode, SMS_AnalParams::iFormat, SMS_AnalFrame::iFrameNum, SMS_AnalParams::iMaxSleepingTime, SMS_Guide::iPeakChosen, SMS_Guide::iStatus, SMS_AnalParams::nGuides, SMS_Data::pFSinAmp, SMS_Data::pFSinFreq, SMS_Data::pFSinPha, SMS_AnalParams::ppFrames, SMS_AnalFrame::pSpectralPeaks, sfloat, SMS_DBG_ALL, SMS_DBG_PEAK_CONT, SMS_FORMAT_H, SMS_FORMAT_HP, SMS_FORMAT_IH, SMS_FORMAT_IHP, SMS_MALLOC, and SMS_OK.

Referenced by sms_analyze().

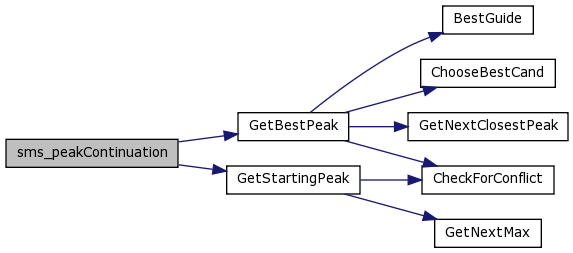

Here is the call graph for this function:
